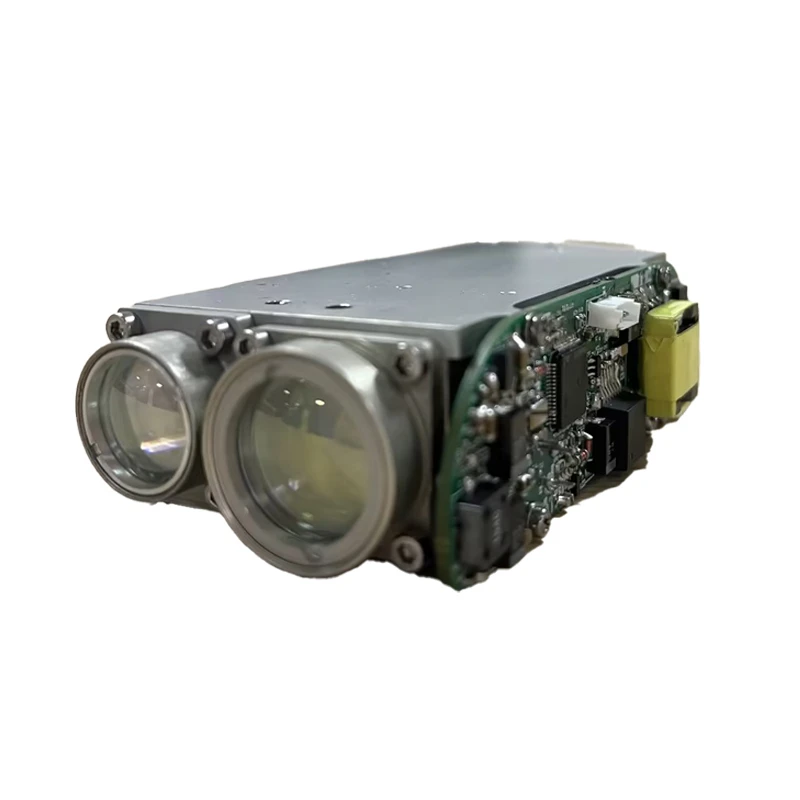

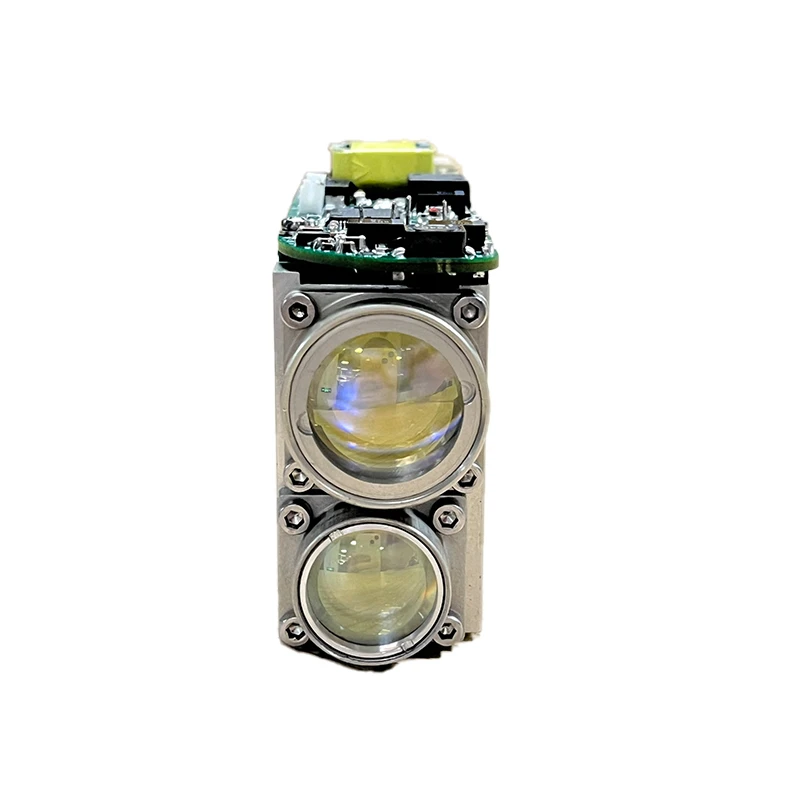

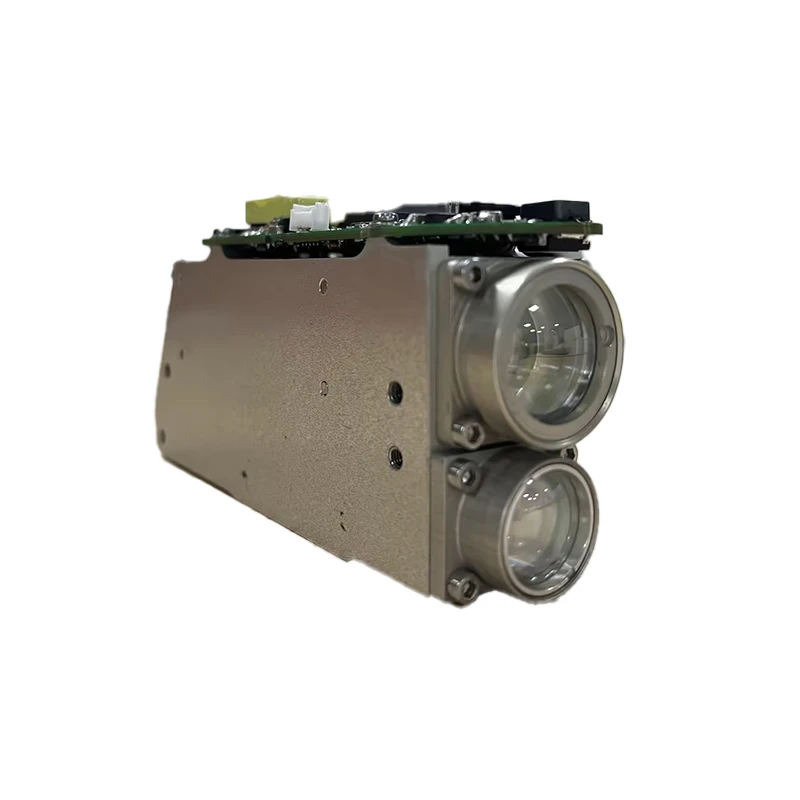

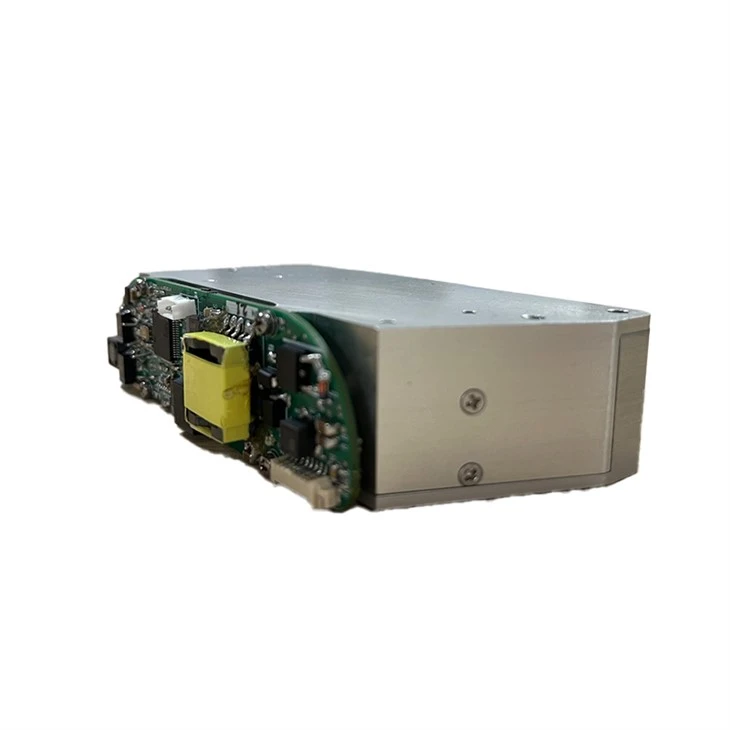

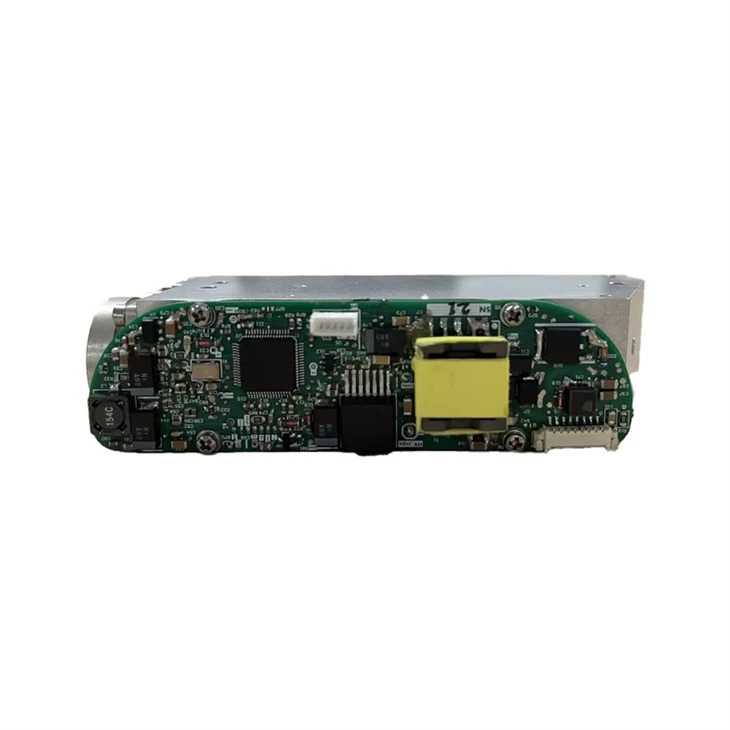

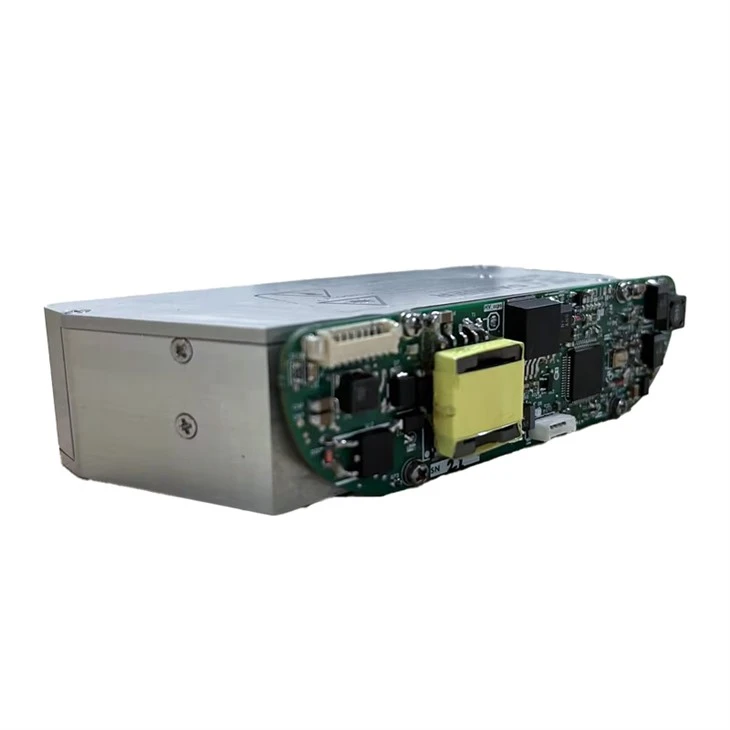

Extra Long Distance Tub Rog Rangefinder
Ntxiv Ntev Ntev 16000 Meters Tub Rog Rangefinder ib qho me me module uas tuaj yeem yooj yim sib xyaw rau hauv ntau lub tshuab hluav taws xob kho qhov muag. Lub kaw lus tuaj yeem siv rau hauv hav zoov, kev tswj hwm vaj tse, kev tsim kho dav dav, kev siv hluav taws xob, kev tsuas, kev sib txuas lus, kev ruaj ntseg thiab kev ua tub rog. Lub module yog tshwj xeeb tshaj yog haum rau handheld tub rog rangefinders, los yog lub teeb-weighted UAVs los yog drones.
|
Kev sib tw |
|
|
Parameter |
Specification |
|
Hom Laser |
solid-state laser |
|
Wavelength (nm) |
1064 |
|
Cov zis zog [ib pulse] (mJ) |
Nominally 15 |
|
Pulse Width (nS) |
< 5 |
|
Beam Divergence [typical] (mrad) |
< 1 |
|
Beam Diameter [ntawm qhov tawm] (mm) |
20 |
|
Txais Aperture [lub ntsiab] (mm) |
16.5 |
|
Lub Sijhawm Kub Kub (min) 1 |
1 |
|
Detector [lub ntsiab] |
APD nrog lub sijhawm sib txawv nce |
|
Ntau Yam Kev Nyeem-out Limits (m) |
Min. 100 Max. 16 000 |
|
Kev Ua Haujlwm 2 [Std. Ntshiab 3; max.] (m): tus txiv neej [0.45 × 1.8m] luas [2.3 × 2.3 m] tsev [loj] |
2800 6000 12000 |
|
Ntau qhov tseeb [typical](m) |
±2 |
|
Ranging Rate [ib feeb] (Hz):
Hom Max.4
|
0.2 1: Sib nrug ntawm 20 txhaj tshuaj ntawm 0.5Hz nrog lub sijhawm txias [tag nrho lub sijhawm 2 min] |
|
Kev Nyab Xeeb & Kev Tiv Thaiv |
|
|
Laser Classification |
Chav Kawm 3R |
|
Pom pom Emission lim |
thaiv |
|
Pom Emission [@ Ntau dua lossis sib npaug rau 5m] |
NIL |
|
Audible Emission [@ Ntau dua lossis sib npaug rau 5m] |
NIL |
|
Txhawb nqa |
|
|
MTBF1 [hauv av mobile] (shots) |
> 1,000,000 |
|
Warranty (xyoo) |
1 |
|
Technical Service (xyoo) |
10 |
|
Kev sib txuas lus |
|
|
Chaw nres nkoj |
Serial |
|
Hom |
RS422 Full-DUPLEX |
| Baud Rate | 38400 |
|
Cov yam ntxwv ntawm lub cev |
|
|
Loj [kwv yees] (g) |
< 250 |
| Dimensions (mm): Ntev [lub cev] * Dav [lub cev] * Qhov siab [lub cev] |
119*61*28 |
|
Mounting |
3-point rear mount, tapped M3 qhov (5mm tob) |
|
Kev xav tau hluav taws xob |
|
|
Kev khiav hauj lwm Voltage [sab nraud] (Vdc) |
18 txog 36 (zoo tshaj 24) |
|
Kev siv hluav taws xob nruab nrab (W) |
< 6 |
|
Tam sim no ntws @ 24VDc (A) |
1 |
| Ib puag ncig | |
|
Ua haujlwm kub (degree): |
-30 degree rau +60 degree |
|
Cia kub (degree): |
-40 degree rau +70 degree |
|
Environmental Enclosure |
Tsis-Sealed (module) |
