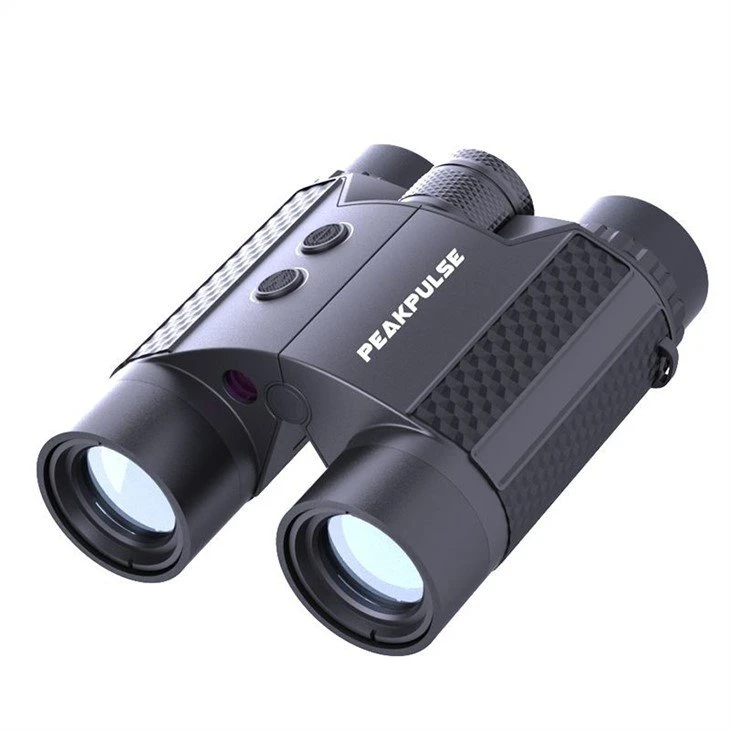

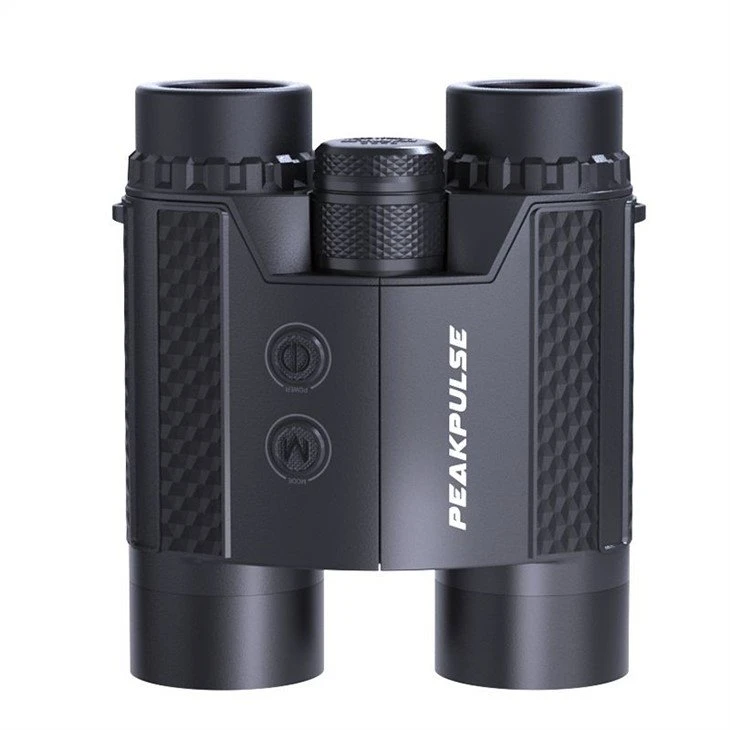

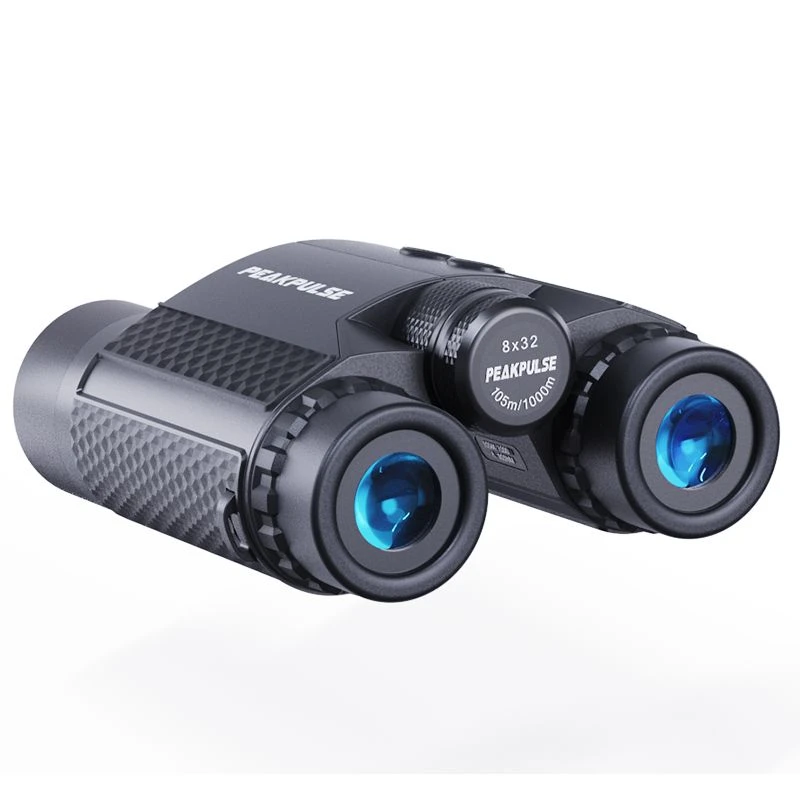

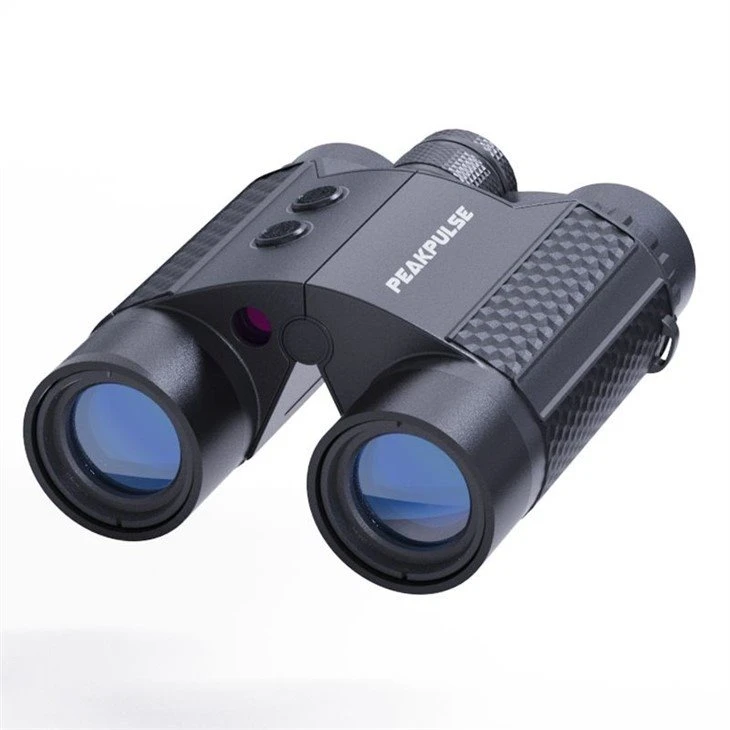

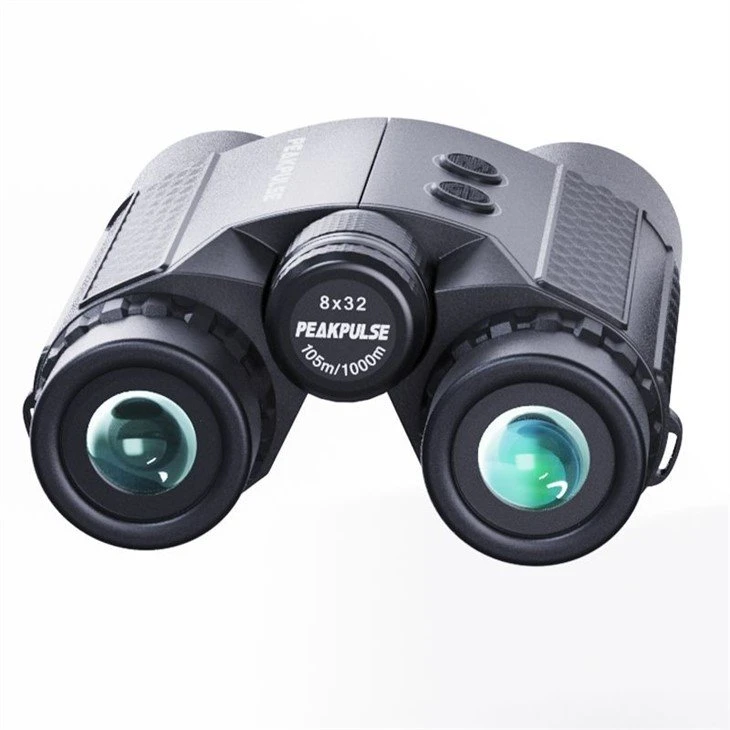

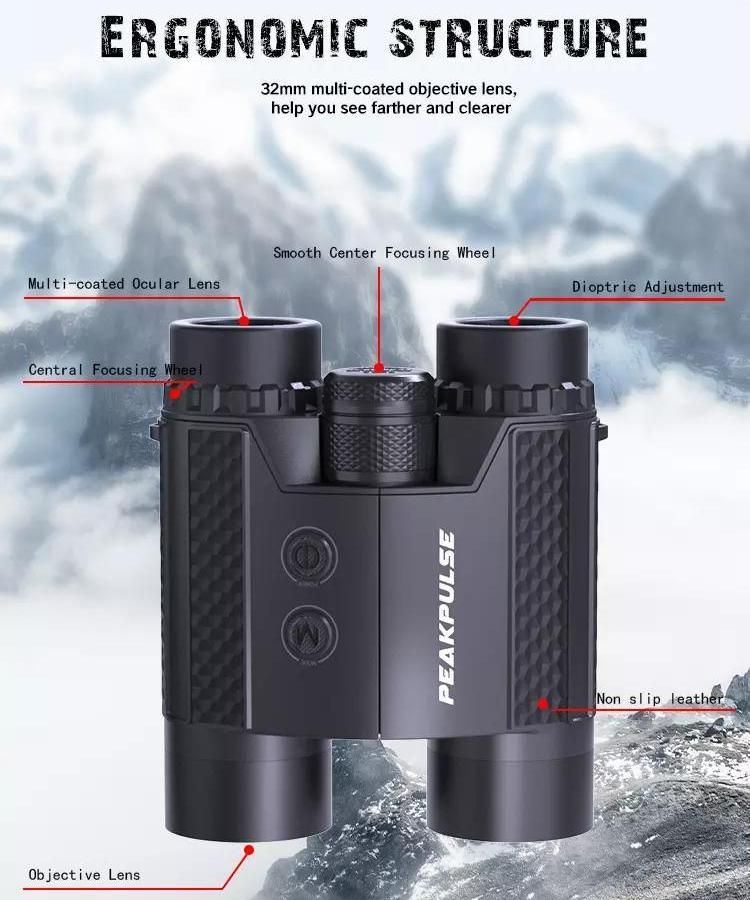

Laser rangefinder sensor telescope
Khoom specifications
Ntsuas nplooj (m) | 800 |
Deer ntsuas ntau (m) | 600 |
Kev ntsuas ntau | 5-3000m |
Kaw tsom xam nrug (m) | 3.5 |
Kev ntsuas qhov tseeb (m) | <400±1m,>400±0.4 percent m |
Lub sij hawm teb (S(m)) | 1:＜0.3 ( Less than or equal to 400) 2:＜0.7 (4001000) 3:＜1 (10002000) |
Kev ntsuas lub kaum sab xis (degree) | ±90 |
Lub kaum ntse ntse ntsuas qhov tseeb (degree) | ±1 |
Tilt muaj nuj nqi | muaj |
Los nag thiab pos huab hnub hom | Yog lawm |
Hom teeb tsa lub sijhawm (s) | 3s |
Zaub brightness kho | Muaj |
Tsawg roj teeb zaub | Yog / 3 theem |
Zaub cia li kaw (S) | 8s |
Laser hom (nm) | 905 (TSI) |
Qhov ntau ntawm cov kab no ntawm ntau yam - nrhiav telescopes yog txhais nyob rau hauv cov xwm txheej hauv qab no:
1) Lub hom phiaj ntsuas muaj qhov nruab nrab ntawm qhov cuam tshuam: xws li phab ntsa ntawm lub tsev;
2) Qhov kev xav ntawm qhov ntsuas lub hom phiaj yog perpendicular mus rau laser emission kev taw qhia;
3) Cov huab cua ntsuas yog tshav ntuj tab sis tsis nyob rau hauv tshav ntuj ncaj qha;
4) Thaj tsam ntawm qhov ntsuas qhov cuam tshuam qhov chaw tsis tsawg dua 2m2m.
Nco tseg: Nws raug nquahu kom koj siv lub koob thaij duab los kho lub tshuab thaum ntsuas qhov ntev -qhov deb ntawm lub hom phiaj kom txo tau qhov jitter ntawm lub tshuab thaum lub sij hawm ntsuas, thiaj li kom tau txais kev ntsuas zoo dua.
Cov kev ceev faj
1. Laser kev nyab xeeb
1) Tsis txhob nias lub khawm hloov thaum tsom los yog saib cov kab ke kho qhov muag los ntawm qhov kawg ntawm lub laser emitting qhov, thiaj li tsis ua rau lub qhov muag puas;
2) Tsis txhob saib lub laser los ntawm lwm yam khoom siv kho qhov muag (xws li lo ntsiab muag lossis lub tsom iav), uas yuav ua rau lub qhov muag puas.
2. Roj teeb kev nyab xeeb
1) Tsis txhob muab cov roj teeb thiab cov khoom hlau xws li cov yuam sij lossis nyiaj npib rau hauv koj lub hnab tshos lossis hnab nyiaj tib lub sijhawm, vim qhov no yuav ua rau lub roj teeb kub dhau lossis luv luv -circuit;
2) Tsis txhob them lub roj teeb (thawj) cim "Tsis Rov Qab". Thaum nws tsis siv sijhawm ntev, thov tshem lub roj teeb kom tsis txhob muaj roj teeb.
