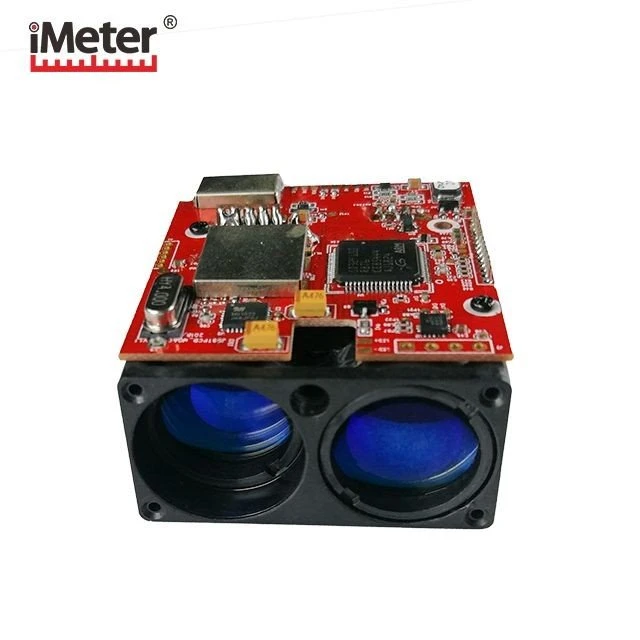

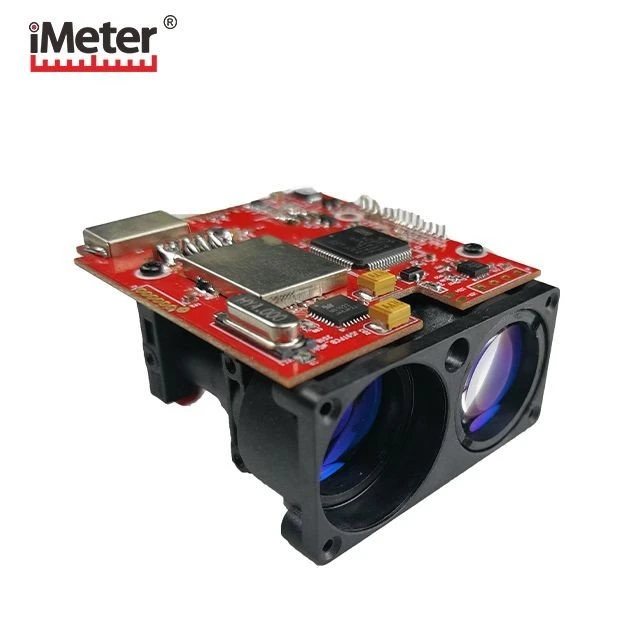

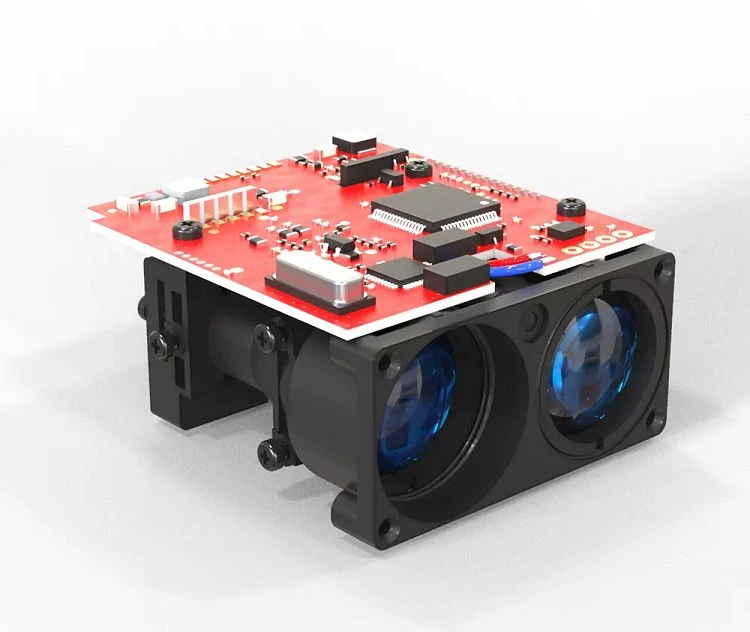

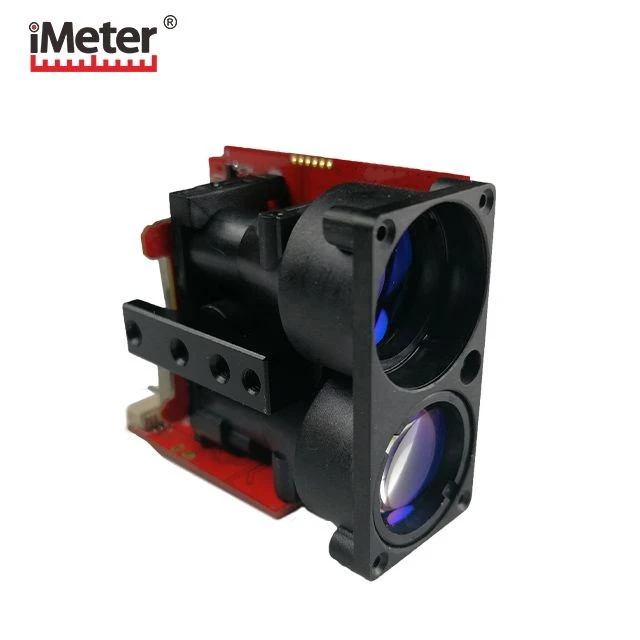

laser rangefinder module sensor
Khoom Parameter
Khoom npe | |
Kev ntsuas ntau | 5~600/ 1000/ 1500/ 3000m |
Ntau yam raug | 5~100m, ±0.5m; 100~400m, ±1m; >400m,±0.4%m |
Ntau zaus | 10HZ (Qhov ntau zaus tuaj yeem hloov kho) |
hexadecimal | |
Baud Rate | 9600~230400bps (Universal) |
Laser Divergence Angle | 3mrad |
905nm | |
Chav kawm 1 | |
3~5V | |
Ua hauj lwm tam sim no | 110 mA |
Fais fab mov | Serial chaw nres nkoj fais fab mov |
36g | |

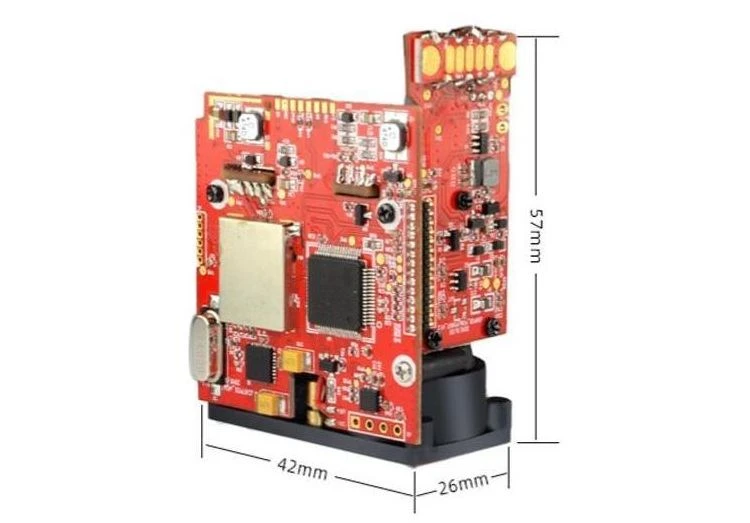

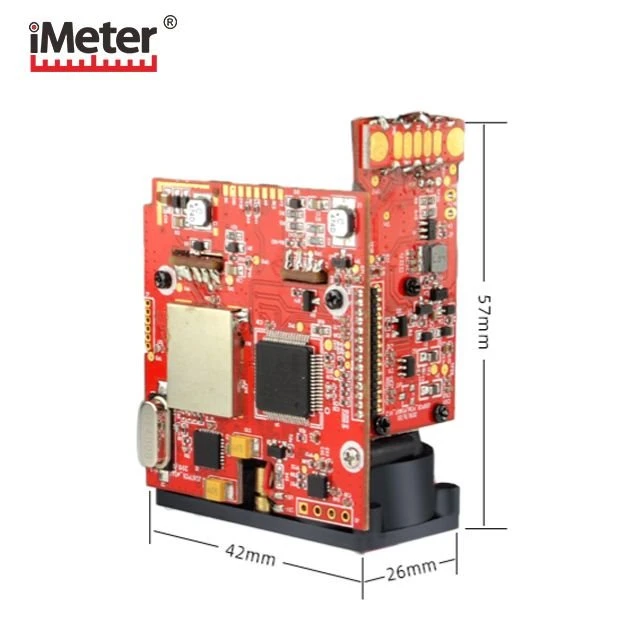

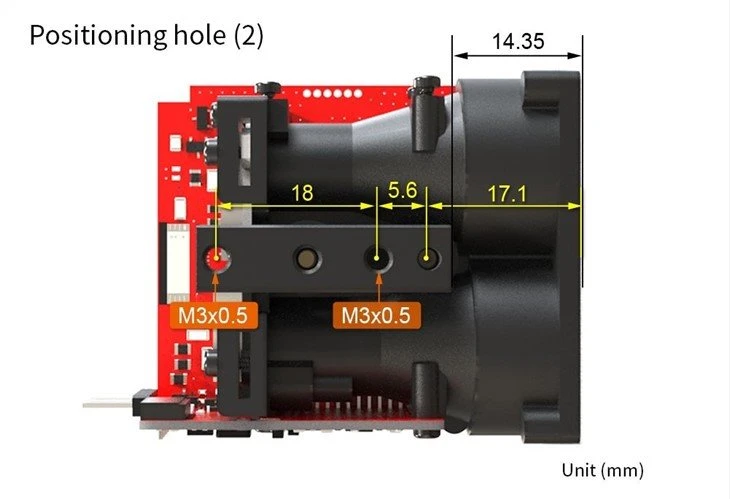

Loj | 57mm*26mm*42mm |
Ua haujlwm kub | -20℃ ~50℃ (-4~122℉) |
Cov ntaub ntawv interface | TTL (tuaj yeem hloov mus rau RS232 los ntawm kab adapter) |
800G/ms (10times/s) |

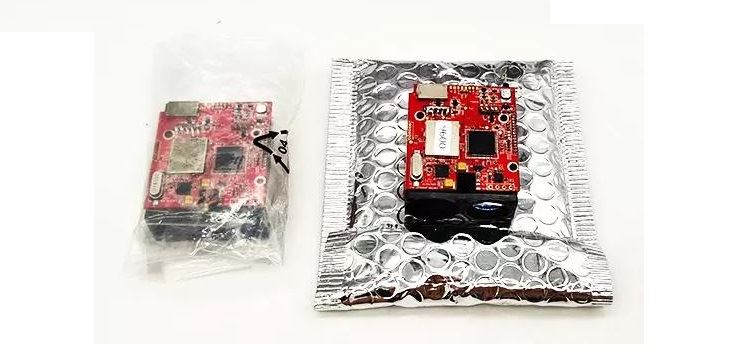

* Anti-static hnab yas * 1
* Txhawb customized ntim
* Yog tias koj xav tau nkoj hauv ntau, peb muab cov thawv ntim khoom tsis zoo rau ib puag ncig.
1) Transportation
Thov ntxiv cov ntaub ntawv cushioning txaus rau hauv lub thawv kom tsis txhob muaj kev puas tsuaj thaum thauj.
2) Storage
