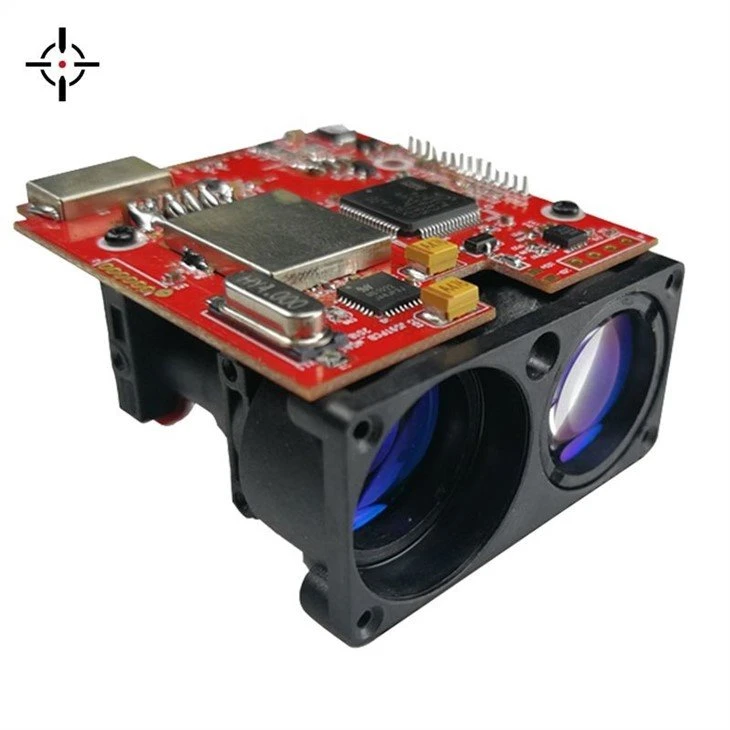

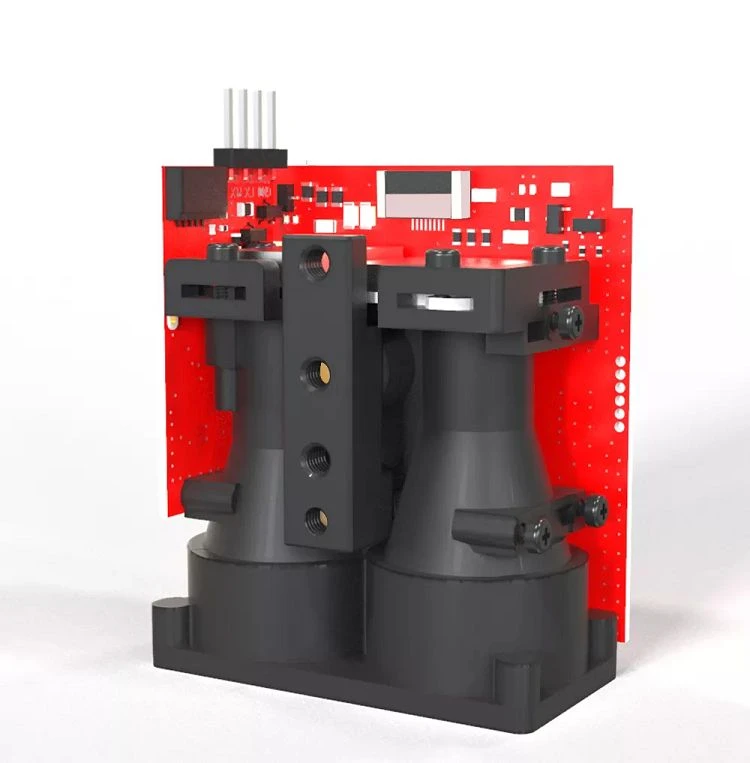

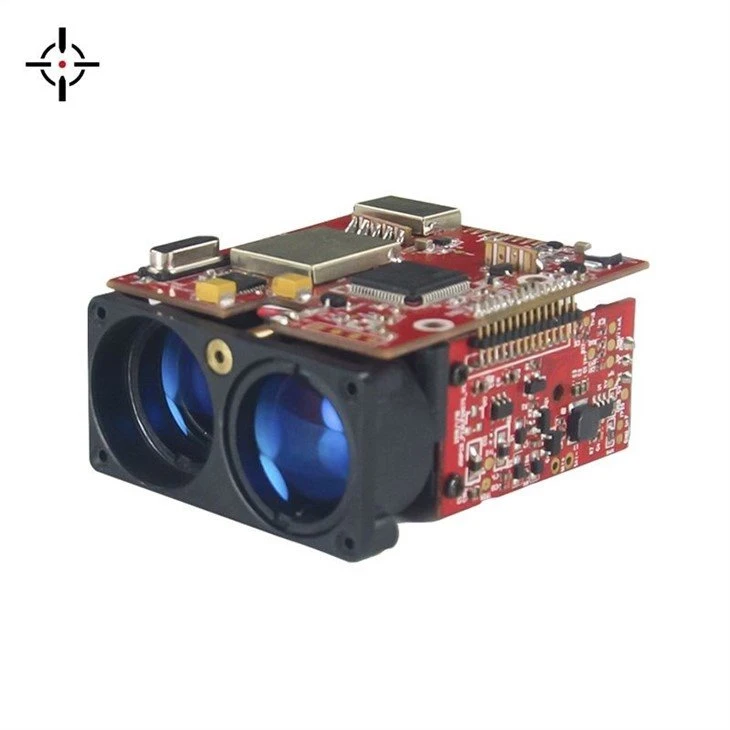

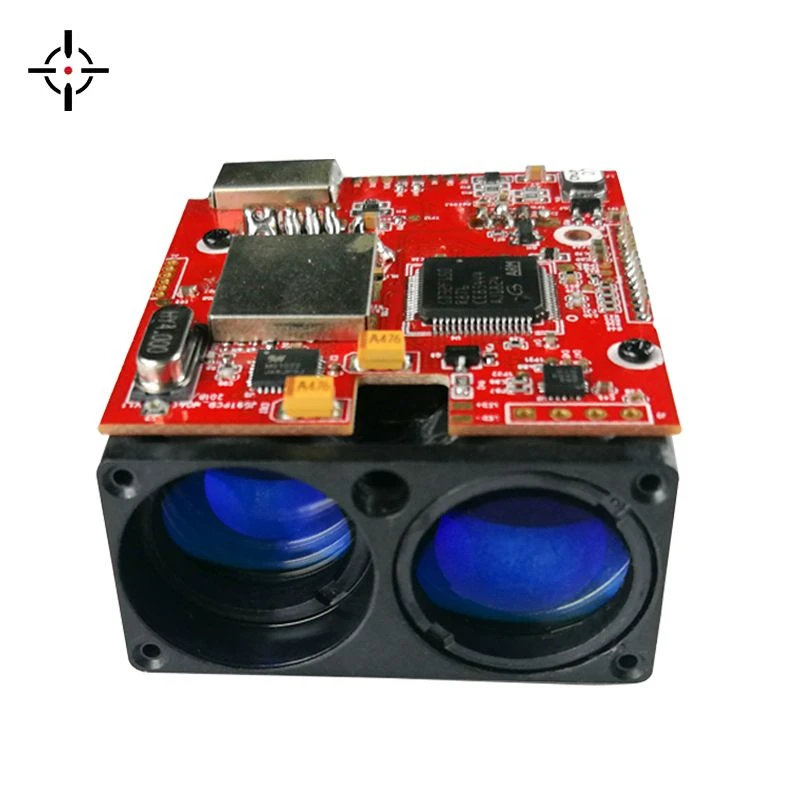

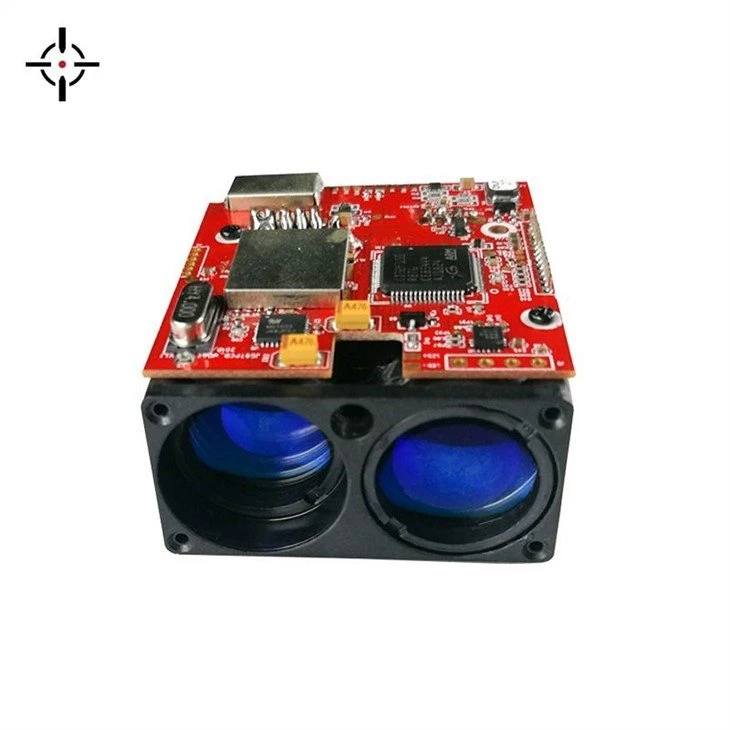

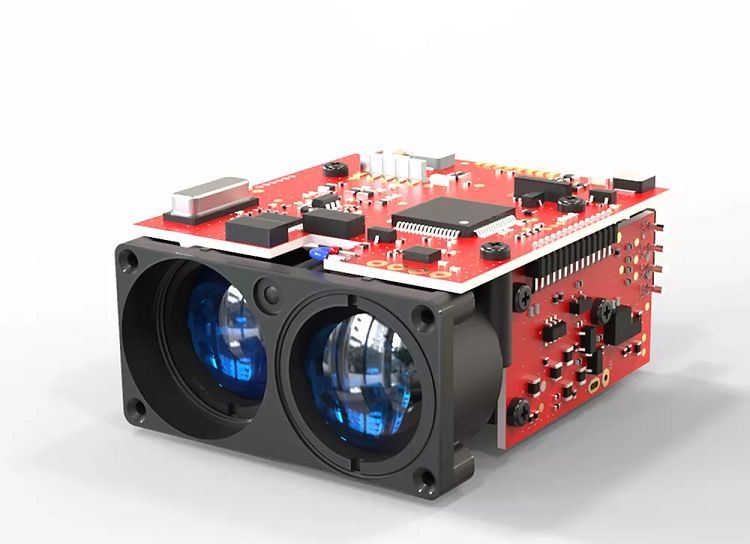

2km laser rangefinder module
Lub laser ranging module tuaj yeem paub tsis tau -kev sib cuag thiab tsis muaj kev cuam tshuam. Nws muaj qhov zoo ntawm qhov ntsuas qhov tseeb, qhov me me, lub teeb yuag, yooj yim installation, thiab kev khiav hauj lwm kub ntau. Nws yog tsim rau kev koom ua ke rau ntau yam khoom siv hluav taws xob kho qhov muag, xws li tsom iav hmo ntuj, drone pods, thiab lwm yam.
Khoom Parameter
Khoom npe | Laser Ranging Module |
Kev ntsuas ntau | 5600/ 1000/ 1500/ 3000m |
Ntau yam raug | 5~100m, ±0.5m; 100~400m, ±1m; >400m, ±0.4 percent m |
Ntau zaus | 10HZ (Hloov zaus tuaj yeem hloov kho) |
cov ntaub ntawv hom | hexadecimal |
Baud Rate | 9600230400bps (Universal) |
Laser Divergence Angle | 3mr ua |
Hom Laser | 905nm ua |
Laser Kev Nyab Xeeb Qib | Chav kawm 1 |
Ua hauj lwm voltage | 35V |
Ua hauj lwm tam sim no | 110 mA |
Fais fab mov | Serial chaw nres nkoj fais fab mov |
Khoom hnyav | 36g |

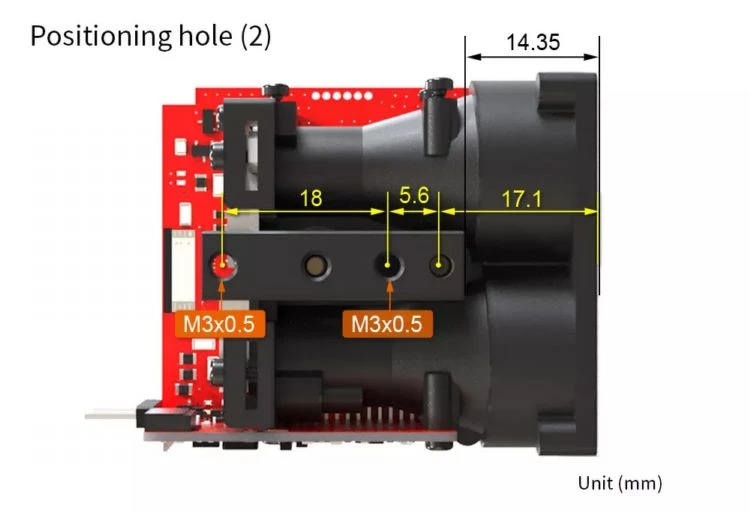

Loj | 57mm26mm 42 hli |
Ua haujlwm kub | -20 degree 50 degree (-4122℉) |
Cov ntaub ntawv interface | TTL (tuaj yeem hloov mus rau RS232 los ntawm kab adapter) |
Impact Resistance | 800G / ms (10 zaug / s) |
Kev ntsuas ceev: Pib ntsuas tam sim tom qab fais fab -on. Tib cov cables siv rau kev sib txuas lus hluav taws xob thiab cov ntaub ntawv. Muab cov txheej txheem sib txuas lus ua tiav los pab txhawb kev sib koom ua ke ntawm cov neeg siv khoom.

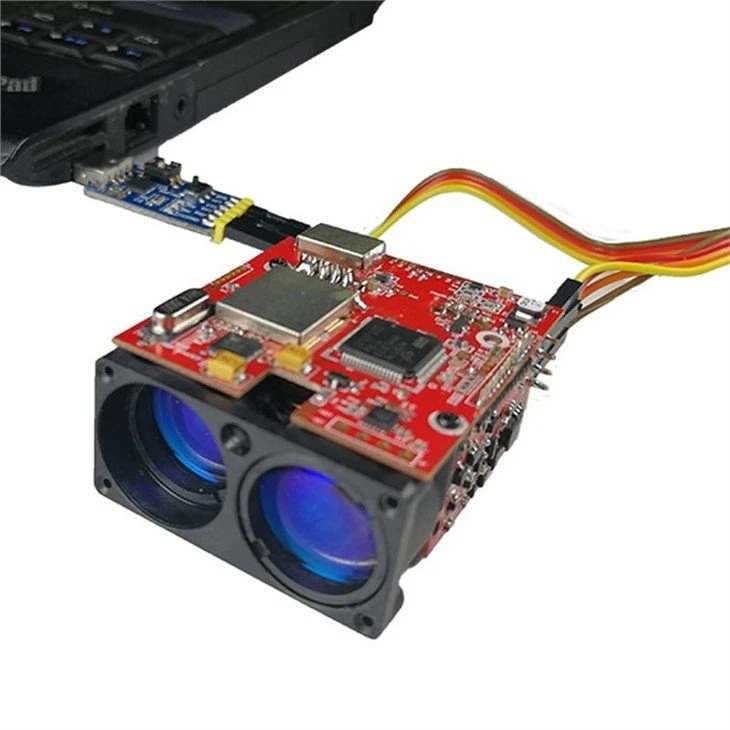

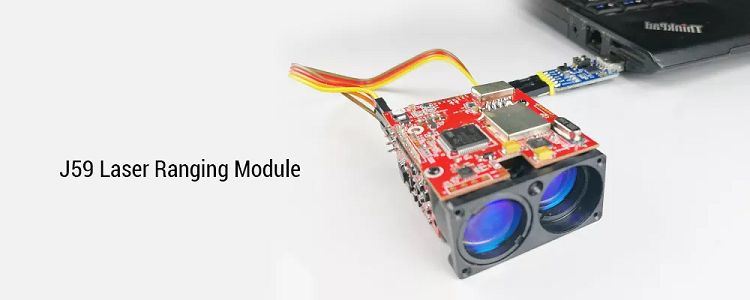

The laser ranging module has a high degree of integration, low power consumption and light weight. It provides fast and accurate distance measurement for the main control system, with a distance accuracy of 1±m. It has TTL interface (can communicate directly with MCU) or RS232 serial port through adapter.
Laser rangeing module yog ib qho kev sib xyaw ua ke, kev siv hluav taws xob tsawg, lub teeb yuag ntau yam sensor. uas tuaj yeem ua ke yooj yim ntawm kev pom, cov khoom siv hmo ntuj pom kev, lub koob yees duab thermal thiab lwm yam khoom, thiaj li ua kom nrawm nrawm nrawm.
Kev ntsuas ntsuas
1) Lub hom phiaj zoo: Thaum lub hom phiaj me dhau los yog tsis sib xws, kev muaj peev xwm thiab ntau yam sib xws yuav txo qis.
2) Kev ntsuas lub kaum ntse ntse: Lub peev xwm sib txawv yuav zoo dua yog tias cov khoom ntsuas yog ntsug nrog laser emission cov kev taw qhia, qhov siab dua qhov nrawm ntawm cov lus teb, Ntawm qhov tsis sib xws, qhov sib txawv muaj peev xwm thiab cov lus teb ceev yuav raug txo; Nws yog qhov ua tau tias qhov ntsuas ntau yam tsis tuaj yeem ua tau raws li qhov muaj peev xwm sib txawv tau teev tseg hauv phau ntawv qhia nyob rau qee qhov xwm txheej hnyav.
