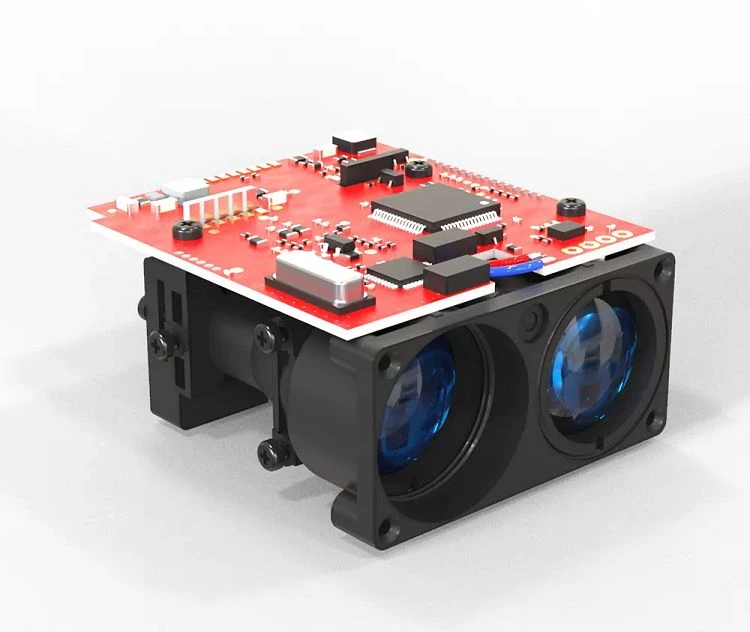

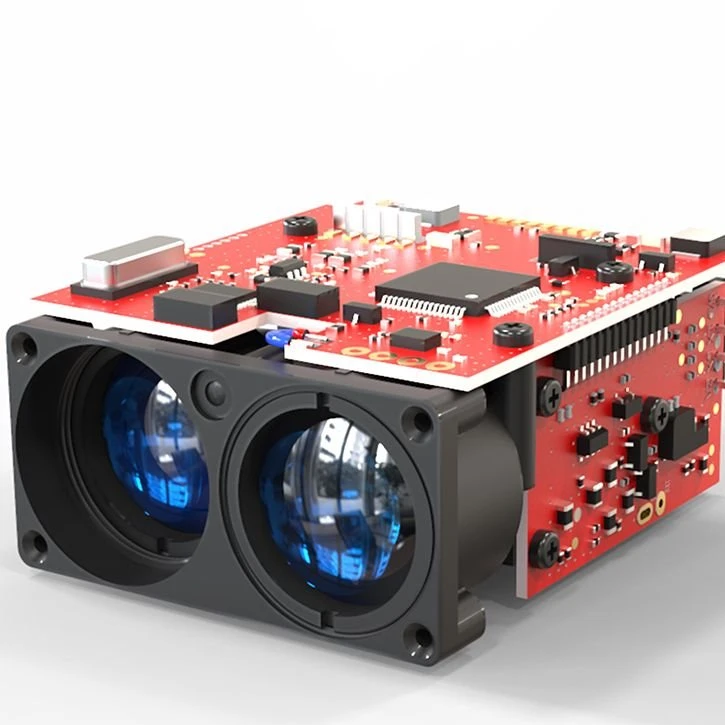

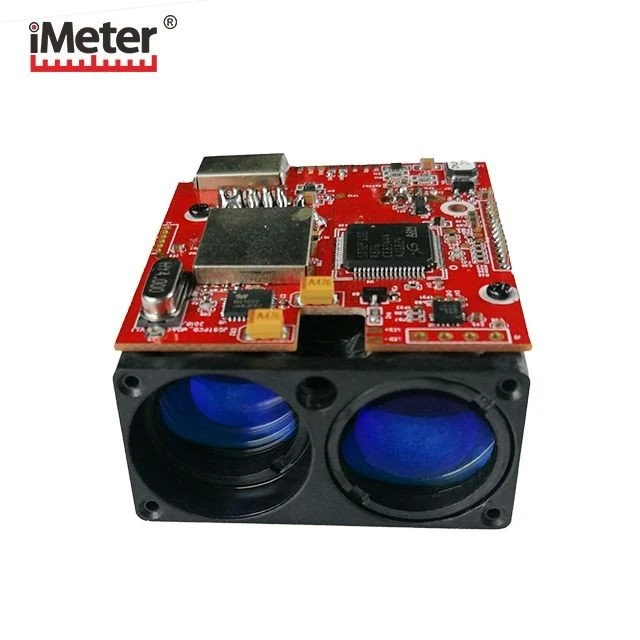

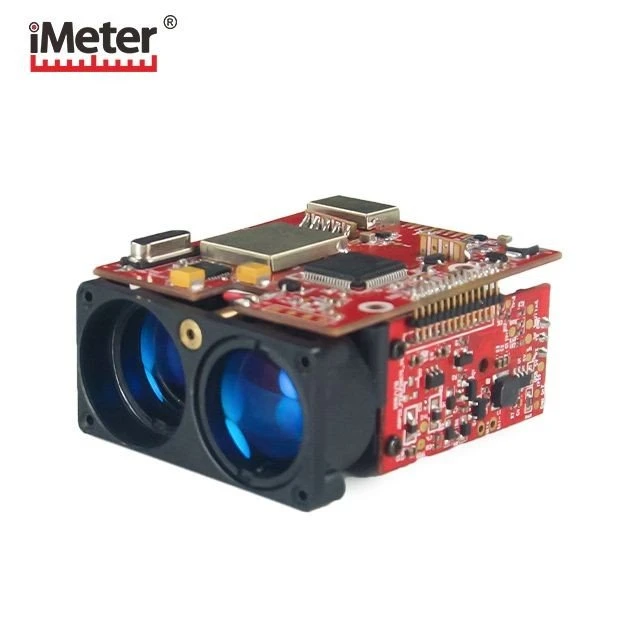

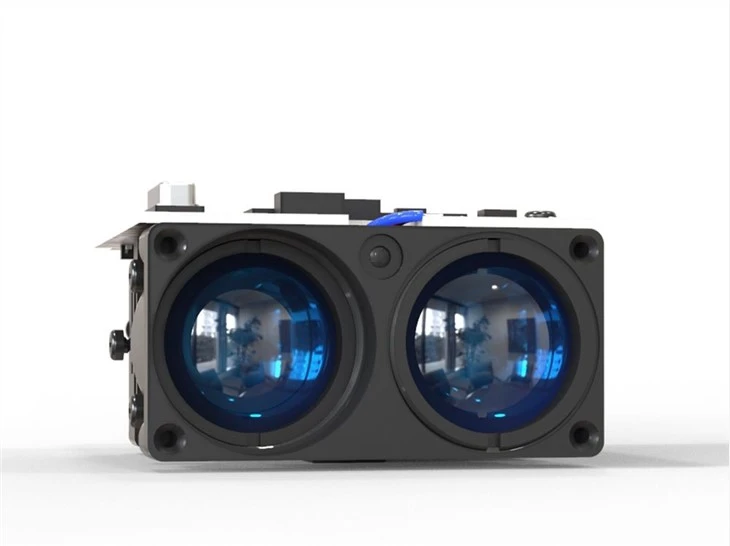

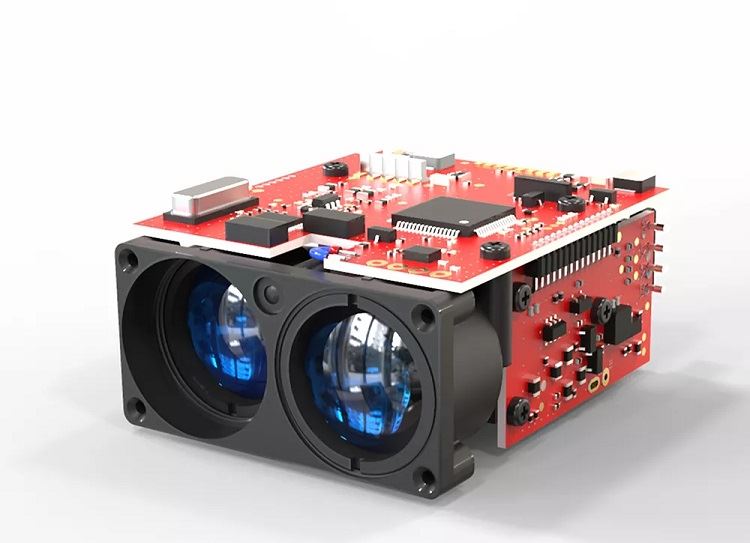

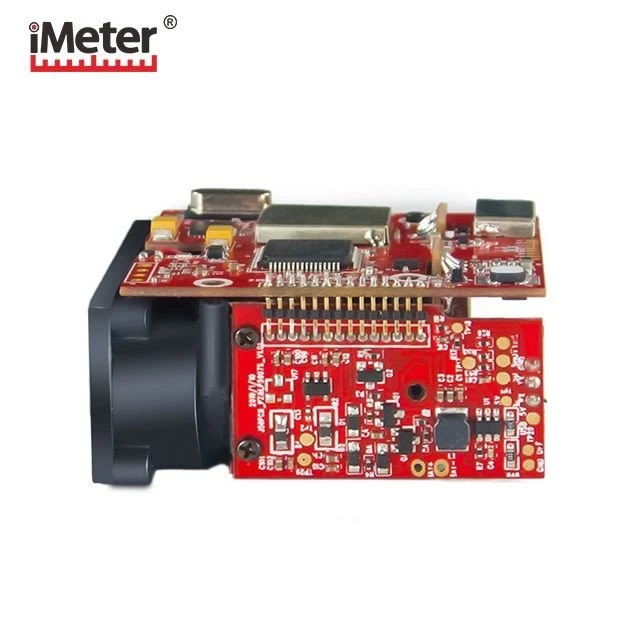

2500m laser rangefinder module
Khoom Parameter
Khoom npe | Laser Ranging Module |
Kev ntsuas ntau | 5600/1000/1500/3000m |
Ntau yam raug | 5~100m, ±0.5m; 100~400m, ±1m; >400m,±0.4 percent m |
Ntau zaus | 10HZ (Qhov ntau zaus tuaj yeem hloov kho) |
cov ntaub ntawv hom | hexadecimal |
Baud Rate | 9600230400bps (Universal) |
Laser Divergence Angle | 3mr ua |
Hom Laser | 905nm ua |
Laser Kev Nyab Xeeb Qib | Chav kawm 1 |
Ua hauj lwm voltage | 35V |
Ua hauj lwm tam sim no | 110 mA |
Fais fab mov | Serial chaw nres nkoj fais fab mov |
Khoom hnyav | 36g |

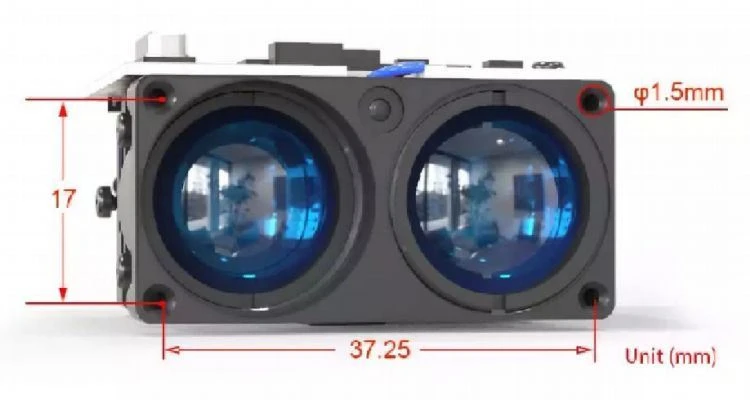

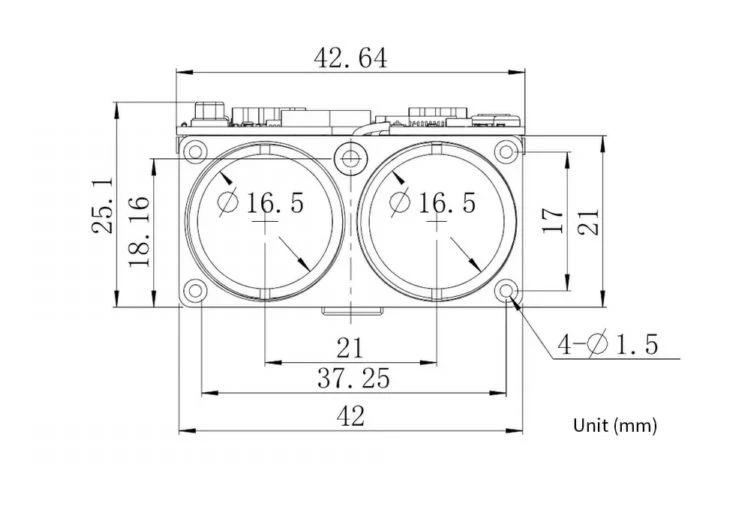

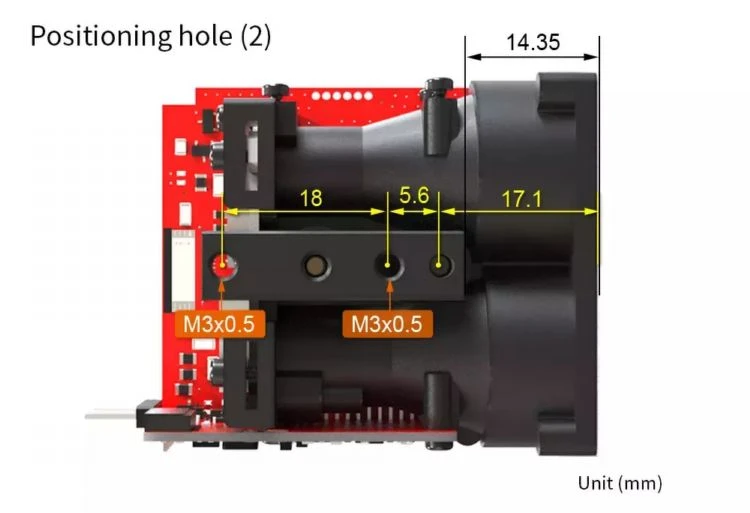

Loj | 57mm26mm 42 hli |
Ua haujlwm kub | -20 degree 50 degree (-4122℉) |
Cov ntaub ntawv interface | TTL (tuaj yeem hloov mus rau RS232 los ntawm kab adapter) |
Impact Resistance | 800G / ms (10 zaug / s) |
The laser ranging module has a high degree of integration, low power consumption and light weight. Provides fast and accurate distance measurement for the main control system, with a distance accuracy of ±1m. It has TTL interface (can communicate directly with MCU) or RS232 serial port through adapter. It facilitated the reconstruction work of the customers and established their own ranging system.
Cov yam ntxwv uas cuam tshuam txog kev muaj peev xwm
1) Lub hom phiaj reactivity: Feem ntau hais lus, qhov siab dua Lub Hom Phiaj reactivity ntawm cov khoom, qhov zoo dua qhov muaj peev xwm. Piv txwv li, rau nruab nrab Lub Hom Phiaj reactivity yam khoom, qhov ntsuas ntau yog 600M, thiab nws tuaj yeem mus txog 800M rau siab hom phiaj reactivity khoom, tab sis tej zaum yuav tsuas yog 300M rau qhov qis Target reactivity ib qho. Lub peev xwm sib txawv ntawm lwm yam khoom tuaj yeem tau txais tib qhov kev txiav txim siab. (Nws yuav tsis ntsuas lub hom phiaj uas tsis tuaj yeem tsim qhov kev xav tsis thoob, xws li dej ntog.)
2) Ib puag ncig yam tseem ceeb: qhov chaw ib puag ncig suav nrog kev siv hnub ci, qhov concentration ntawm cov dej vapor hauv huab cua thiab cov khoom raug tshem tawm, sib txawv ntawm lub kaum sab xis ntawm lub hnub ci, thiab lwm yam (xws li nag, pos huab, daus, pos huab, haze, thiab lwm yam)
FAQ
Q1: Koj lub tuam txhab puas txais OEM / ODM?
A1: tau kawg. Peb tuaj yeem hloov kho rau koj hom, kho cov khoom raws li xim koj nyiam, txhob lo lo ntxhuav luam koj lub logo rau ntawm lub plhaub, tsim koj lub thawv, kho cov haujlwm rau koj cov khoom, txawm tias tsim cov khoom tshiab rau koj.
Q2: Koj lub tuam txhab puas tuaj yeem muab cov qauv?
A2: Yog lawm, peb tuaj yeem muab cov qauv, tab sis cov qauv yuav tsum tau them. Yog tias koj xaj ntau, tus nqi coj mus kuaj yuav raug zam.
Q3: Ua li cas txog kev xa khoom?
A3: We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL, FEDEX, TNT or UPS.
Q4: Yuav ua li cas txog kev muag khoom tom qab-?
A4: 18 lub hlis lav rau txhua yam khoom.
