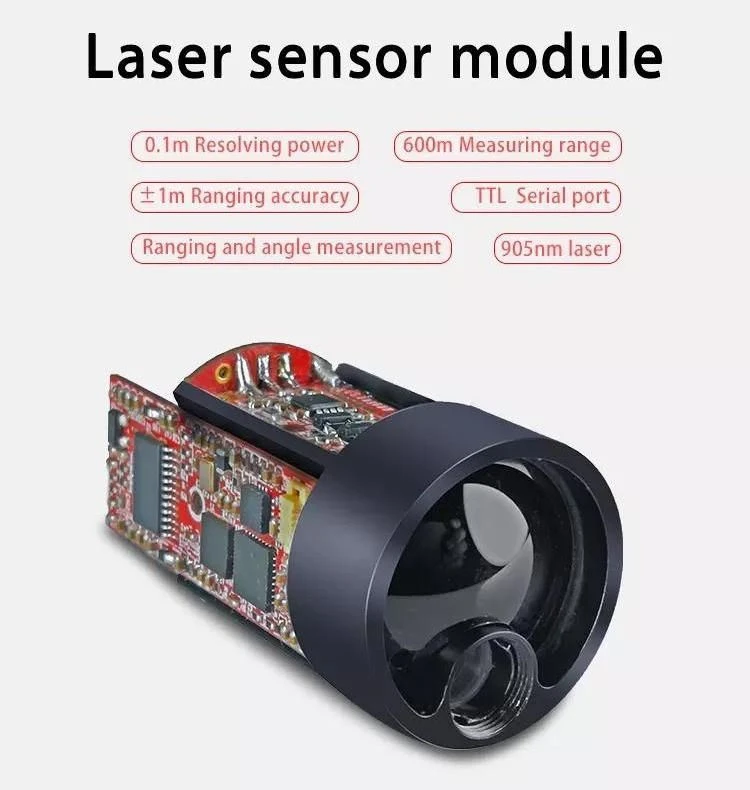

Lub Laser range sensor module muaj 905nm laser, uas muaj cov ntaub ntawv ceev ceev, siab precision, thiab yooj yim heev rau siv. Nws muaj lub zog daws teeb meem ntawm 0.1 meters thiab TTL qhov chaw nres nkoj, uas tuaj yeem siv rau kev ntsuas lub kaum ntse ntse. Nws muaj qhov ntsuas qhov siab txog li 600m. Tsis tas li ntawd, peb lub tuam txhab muaj cov cuab yeej tsim khoom thiab cov tuam txhab paub txog, thiab peb ua ntau yam kev ntsuam xyuas ntawm cov khoom ua ntej nws yuav raug xa tawm, uas tuaj yeem ua kom ntseeg tau qhov zoo ntawm txhua qhov Laser range sensor module.
Khoom nta
Lub laser range sensor module txais ib 905nm semiconductor laser nrog ntau qhov kev daws teeb meem ntawm 0.1m thiab qhov tseeb ntawm 1m, uas tuaj yeem muab qhov nrawm thiab raug rau qhov kev tswj hwm loj. Lub laser range sensor module yog tsim rau kev ntsuas cov khoom uas muaj kev cuam tshuam siab (xws li cov cim kev loj), cov khoom uas muaj kev cuam tshuam nruab nrab (xws li cov phab ntsa ntawm cov tsev), thiab cov khoom uas tsis tshua muaj kev cuam tshuam (xws li ntoo, golf chij, xov tooj, tsiaj txhu. Tos). Tab sis rau ib qho twg, qhov ntsuas qhov ntau ntawm lub laser range sensor module yuav raug txo kom raug.
Khoom Parameters
Technical ntsuas | Kev ua haujlwm parameter | Kev ua haujlwm parameter |
D muaj nuj nqi technical indicators | H/AH/V muaj nuj nqi technical indicators | |
Daim ntawv thov teb | Drone / Kev Ruaj Ntseg / Sweeper / Kev txheeb xyuas tsheb | Ib lub tog raj kheej / ob lub tog raj kheej |
Emission aperture | 6mm ib | 6mm ib |
Tau txais aperture | 17mm (75%) | 17mm (75%) |
Ranging range (cov tsev) | 0.15m-10/20/30/100/200m | 5m-600/1200/1500/3000m |
Raning precision (lub tsev) | ± 3 cm | <400m ±1m;="">4 00m ± 0.4 feem pua |
Ntau zaus | 10KHz / 50KHz / 100KHz | < 600m="" 10hz,="">600m 2 tzs |
Hom zaub | - | OLED / LCD |
Laser hom | 905nm ua | 905nm ua |
Muab hluav taws xob | 3.3-5V | 3.3-5V |
Kev sib txuas lus Interface | Txheem raws li TTL (lwm yam kev cai ua) | Txheem raws li TTL (lwm yam kev cai ua) |
hnyav | 20 ± 1 | 20 ± 10 |
qib waterproof | IP67 | IP67 |
Kev cuam tshuam tsis kam | 800G / ms (10 zaug / s) | 800G / ms (10 zaug / s) |

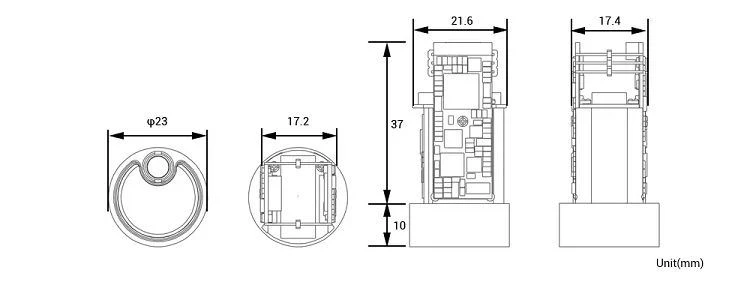

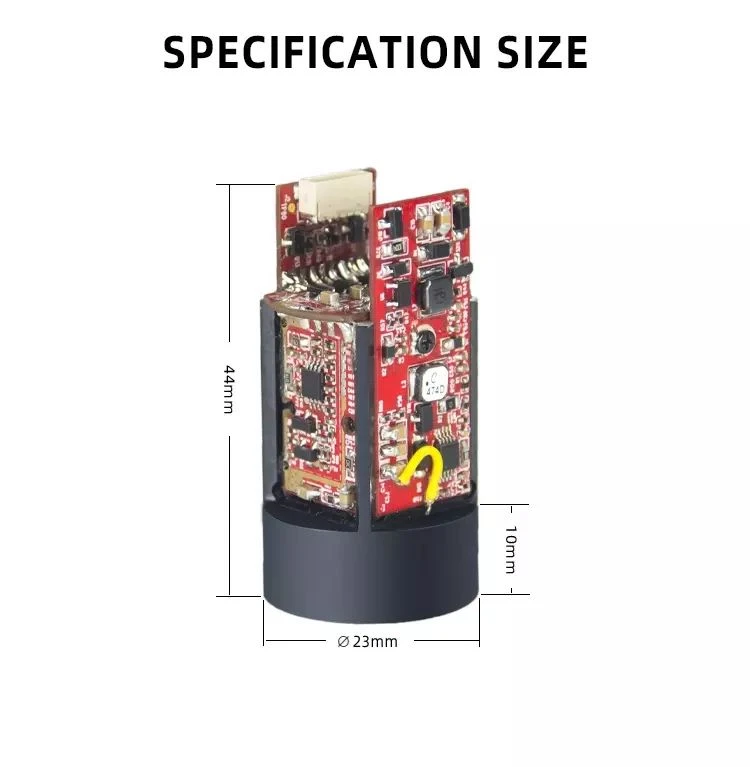

qhov loj | 23 x 44 mm | 23 x 44 mm |
Ua haujlwm kub | -20 degree -50 degree | -20 degree -50 degree |
Baud tus nqi | 9600/115200/230400 (yeem) | 9600/115200bps |
Fais fab pov tseg | 0.8w (standby), 1W ( ntsuas) | 0.8w (standby), 1W ( ntsuas) |

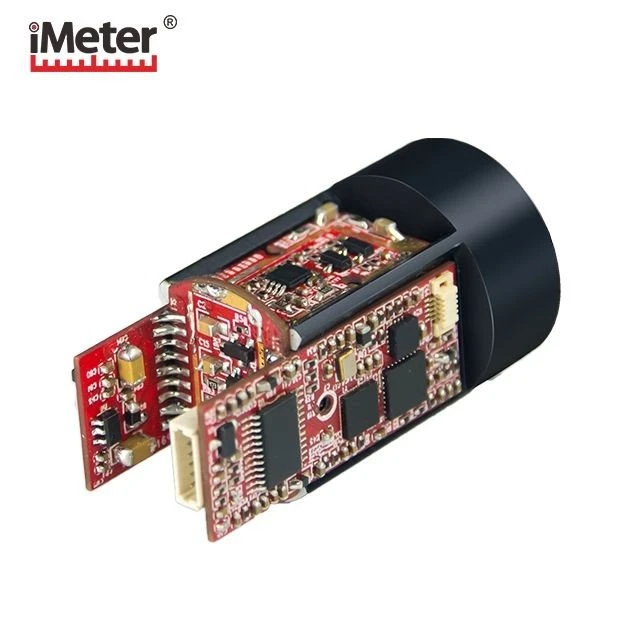

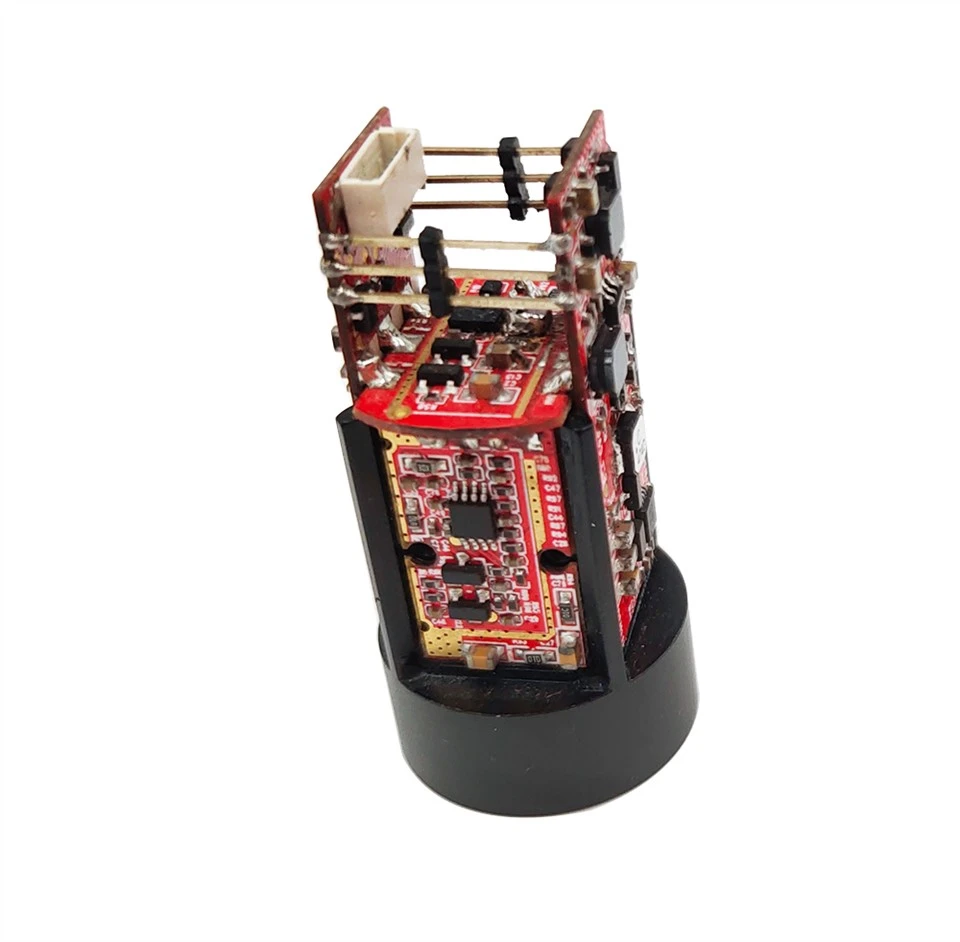

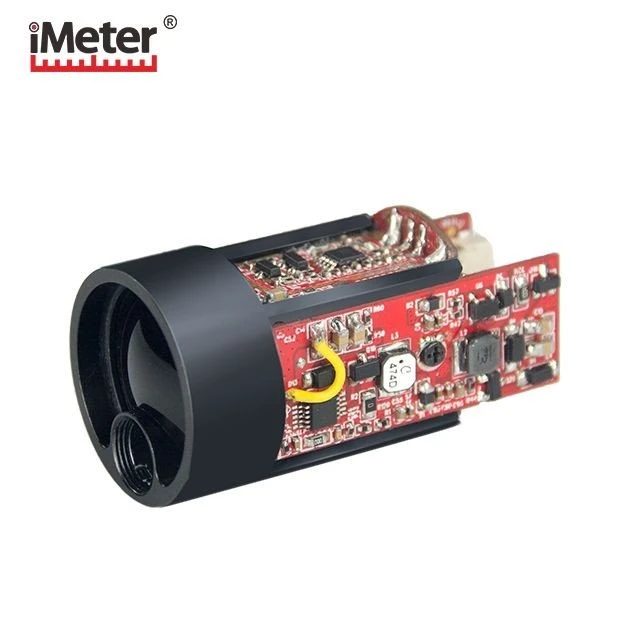

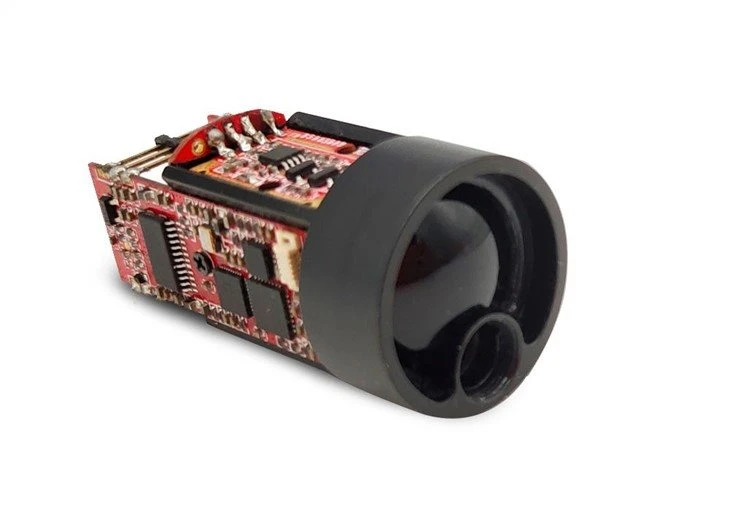

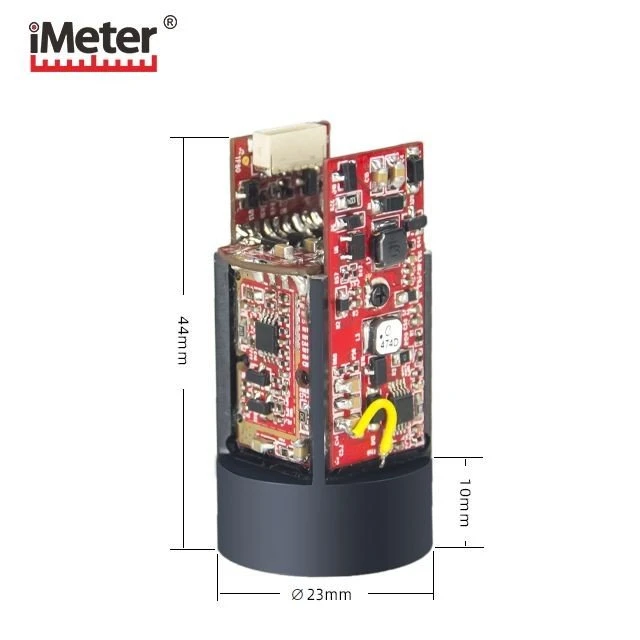

Khoom duab
Cov kauj ruam ua haujlwm
Kauj ruam 1: Ntxig cov ntaub ntawv cable rau hauv lub laser range sensor module thiab tso tawm cov ntaub ntawv ntsuas thaum lub hwj chim;
(Ceeb toom: Tsis txhob ntxig lub ntsaws, thiab nruj me ntsis tswj lub hwj huam mov voltage ntau ntawm 3v ~ 5v);
Kauj ruam 2: Nruab lub serial chaw nres nkoj wizard software thiab txuas lub computer los yog lwm yam khoom siv tswj los ntawm lub interface;
Kauj ruam 3: Tom qab lub software installation tiav, qhib cov zaub interface;
Kauj ruam 4: Debug thiab kuaj.
Xaiv qhov chaw nres nkoj serial: teeb tsa tus lej chaw nres nkoj sib txuas hauv software raws li tus lej chaw nres nkoj ntawm lub khoos phis tawj;
Baud Rate Setting: Qhib lub software interface, koj tuaj yeem teeb tsa tus nqi baud. Qhov kev xaiv baud tus nqi yog 9600, 115200.......
Nco tseg: Yog xav paub ntxiv txog kev ua haujlwm, thov mus saib cov lus qhia cov lus txib.
